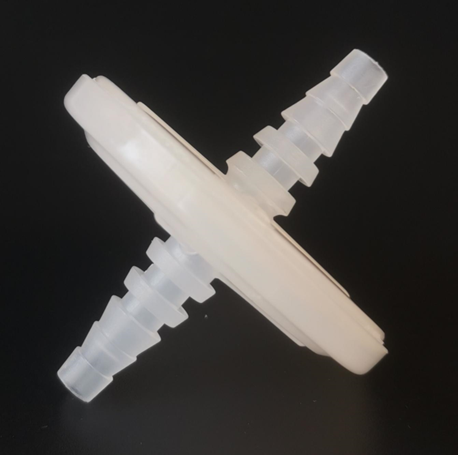

50mm filters are ideal for venting of fermenter and bioreactor, gas purifying, gas sterile filtration, and in-line vacuum pump protection. Featured by 19.6cm2 filtration area and stepped hose barb connections, it is provided with EO sterile packing and non-sterile packing.
Features and Benefits
● 7-13mm stepped hose barb connection with female luer slip interior
● Wide range of filter media: PTFE、PVDF、PP、GF、PES
● Available in various pore sizes: 0.22, 0.45, 0.65, 0.8,1.0, 3.0, 5.0
● Larger filtration area, larger air/gas flow rates
Quality
● Filters produced in a controlled environment
● Manufactured according to ISO9001 certified Quality Management System
Specification
| Out Diameter | 65mm |
| Connector | 7-13mm stepped hose barb connection with inner 6:100 luer slip |
| Filtration Area | ≥19.6cm2 |
| Max Operating Temp. | 60 ℃/140 ℉ |
| Max Operating Pressure | 3.0bar@23℃;2.5bar@60℃ |
| Sterilizatioin | By autoclave at 121℃30min or EO |
Ordering Information
| Item No. | Product Name | Specification |
| RSF50TS2 | Air Filter | φ50 0.22 μmPTFE 25pcs/pack |
| RSF50TS1 | Air Filter | φ50 0.45 μmPTFE 25pcs/pack |
| RSF50TS065 | Air Filter | φ50 0.65 μmPTFE 25pcs/pack |
| RSF50TS080 | Air Filter | φ50 0.8 μmPTFE 25pcs/pack |
| RSF50TS10 | Air Filter | φ50 1 μmPTFE 25pcs/pack |
| RSF50TS30 | Air Filter | φ50 3 μmPTFE 25pcs/pack |
| RSF50TS50 | Air Filter | φ50 5 μmPTFE 25pcs/pack |
If you want to purchase this product, please email us at [email protected] and provide the product’s full name, item number, and the quantity you wish to buy.
