Feathers and Use
It can be used for sterilized at high temperature and mainly be used in the filtration of HPLC mobile phase and has the function of out gas to guarantee the clean of mobile phase and avoid the blockage of HPLC liquid flow path. It is composed of Borosilicate glass funnel, support screen and receiving bottle plus anodized aluminum spring clamp. The performance of withstanding pressure and sealing is very good, so that it can match perfectly with lab use vacuum pump.
Applications:
- General Filtration and Clarification
- Bacteriological Analysis
- Particulate Contamination
- Analysis of Oils and Hydraulic Fluids
- Exfoliative Cytology
Ordering Information

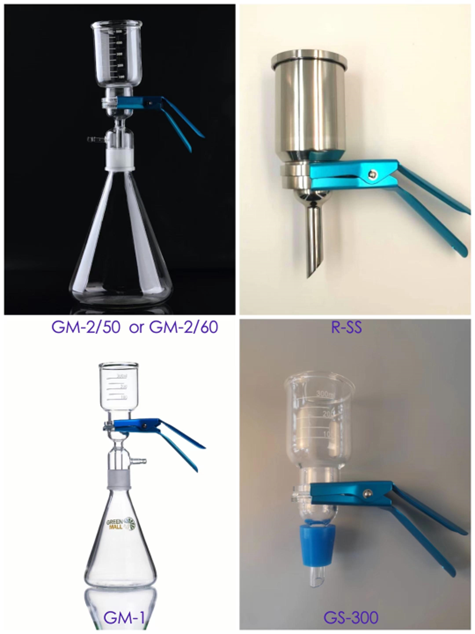

| Item No. | Model | Funnel | Material of Support Screen | Receiving Bottle | Suitable Membrane |
| RNGH30051G | GM-1 | 300ml Glass | Boro.3.3 glass | 1000ml | φ47 |
| RNGH50052G | GM-2/50 | 500ml Glass | Boro.3.3 glass | 2000ml | Φ47 |
| RNGH50062G | GM-2/60 | 500ml Glass | Boro.3.3 glass | 2000ml | φ60 |
| RNGH30051S | GS-1 | 300ml Glass | Boro.3.3 glass | 1000ml | φ47 |
| RNGH3005NS | GS-300 | 300ml Glass | Boro.3.3 glass | —– | φ47 |
| RNSH30051S | GM-S1 | 300ml SUS | SS316L | 1000ml | φ47 |
