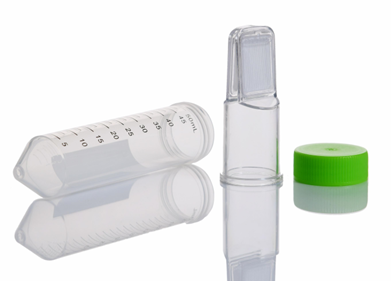

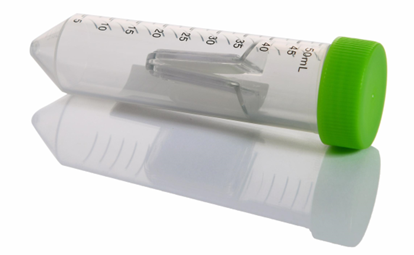

The ultrafiltration centrifugal tube is also called centrifugal filter unit disposable which is a single-use ultrafiltration device with membrane inside for the concentration and/or purification of biological samples. The optimized design with twin membrane filters and sleek internal profile ensure maximum process speeds all the way down to the last few microliters, which results in more than 80-fold concentration. The innovative design, ease of use, speed and exceptional concentrate recoveries are the main features of the concentrators. This 15/50 ultra centrifugal filter unit including concentrator insert(with membrane inside), outer tube and cap enables the fastest sample concentration with the highest recoveries. This device can handle a sample volume of up to 15 ml in swing-bucket rotors and of up to 11 ml in fixed-angle rotors that accept 50 ml centrifuge tubes.
Application
- Concentration of biological samples containing antigens, antibodies, enzymes, nucleic acids, or microorganisms
- Purification of macromolecular components found in tissue culture extracts or cell lysates and protein removal prior to HPLS
- Concentration of dilute or pre-purified proteins from column eluents
- Desalting, buffer exchange and protein dialysis
Technical Data
| Concentrator Capacity | Swing-bucket Rotor | 15ml |
| Fixed-angle rotor (25°) | 11ml | |
| Dimensions | Total Length(Concentrator insert) | 71mm |
| Total length(in tube with cap) | 120mm | |
| Diameter(concentrator insert) | 30mm | |
| Active membrane area | 9.3cm2 | |
| Hold-up volume of membrane | ＜10μl | |
| Dead-stop volume for swing-bucket rotor | 100μl | |
| Dead-stop volume for fixed-angle rotor | 60μl | |
| Materials | Body | Polypropylene |
| Filtrate Vessel | PC | |
| Concentrator cap | Polypropylene | |
| Membrane | Polyethersulfone(PES) Or Regenerated Cellulose | |
| 1Kda 3Kda, 5Kda, 10Kda, 12Kda, 14Kda, 30Kda, 50Kda, 100Kda,150Kda |
Ordering Information
| Item No. | Specification | Quantity |
| GMP15XX324 | Centrifugal Filter Unit, 3Kda PES 15ml | 24 |
| GMP15XX524 | Centrifugal Filter Unit, 5Kda PES 15ml | 24 |
| GMP15X1024 | Centrifugal Filter Unit, 10Kda PES 15ml | 24 |
| GMP15X3024 | Centrifugal Filter Unit, 30Kda PES 15ml | 24 |
| GMP15X5024 | Centrifugal Filter Unit, 50Kda PES 15ml | 24 |
| GMP1510024 | Centrifugal Filter Unit, 100Kda PES 15ml | 24 |
| GMP1550024 | Centrifugal Filter Unit, 500Kda PES 15ml | 24 |
| GMC15XX324 | Centrifugal Filter Unit, 3Kda RC 15ml | 24 |
| GMC15XX524 | Centrifugal Filter Unit, 5Kda RC 15ml | 24 |
| GMC15X1024 | Centrifugal Filter Unit, 10Kda RC 15ml | 24 |
| GMC15X3024 | Centrifugal Filter Unit, 30Kda RC 15ml | 24 |
| GMC15X5024 | Centrifugal Filter Unit, 50Kda RC 15ml | 24 |
| GMC1510024 | Centrifugal Filter Unit, 100Kda RC 15ml | 24 |
| GMC1550024 | Centrifugal Filter Unit, 500Kda RC 15ml | 24 |
If you want to purchase this product, please email us at [email protected] and provide the product’s full name, item number, and the quantity you wish to buy.
